964280-2
Manufacturer:
TE Connectivity
Mfr.Part #:
964280-2
Datasheet:
Description:

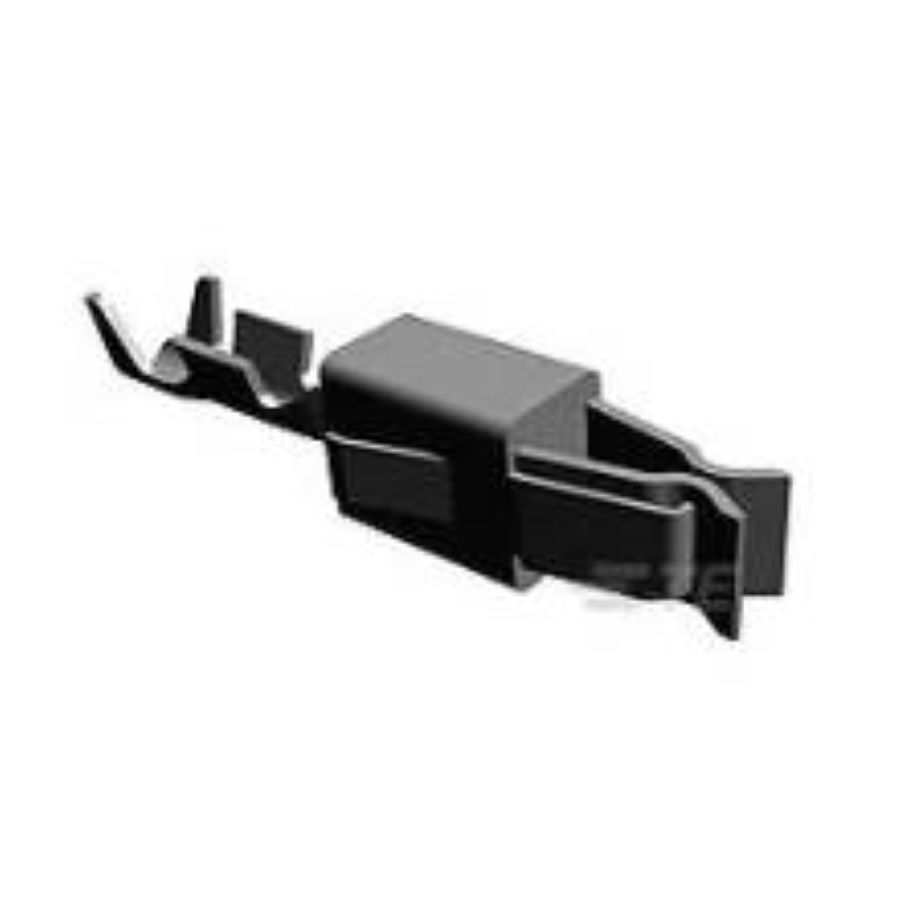

Automotive Connectors Cable Accessory Type:Timer Contact Female 24 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 18.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.15 mm |
| Depth | 4.5 mm |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Copper, Tin |
| Current Rating | 30 A |
| Approvals | IEC, VDE |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, PCB, Signal |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 24 AWG |
| Insulation Diameter | 1.6 mm |
| Mating Tab Width | 2.794 mm |
| Tab Thickness | 800 µm |
| Sealable | No |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 24 AWG to 20 AWG |
| Accessory Type | Timer Contact |
Stock: 4944
Distributors
pcbx
pcbxUnit Price$0.71734
Ext.Price$0.71734
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71734 | $0.71734 |
| 10 | $0.35867 | $3.58670 |
| 50 | $0.27590 | $13.79500 |
| 100 | $0.21223 | $21.22300 |
| 500 | $0.16325 | $81.62500 |
| 1000 | $0.12558 | $125.58000 |
| 3000 | $0.09660 | $289.80000 |
| 5000 | $0.09098 | $454.90000 |
| 10000 | $0.08569 | $856.90000 |
| 30000 | $0.08071 | $2421.30000 |
